ZeroClear DrillPlate™ for ShopSmith 510/520

Cleaner holes. No tear-out. Built by a fellow ShopSmith owner.

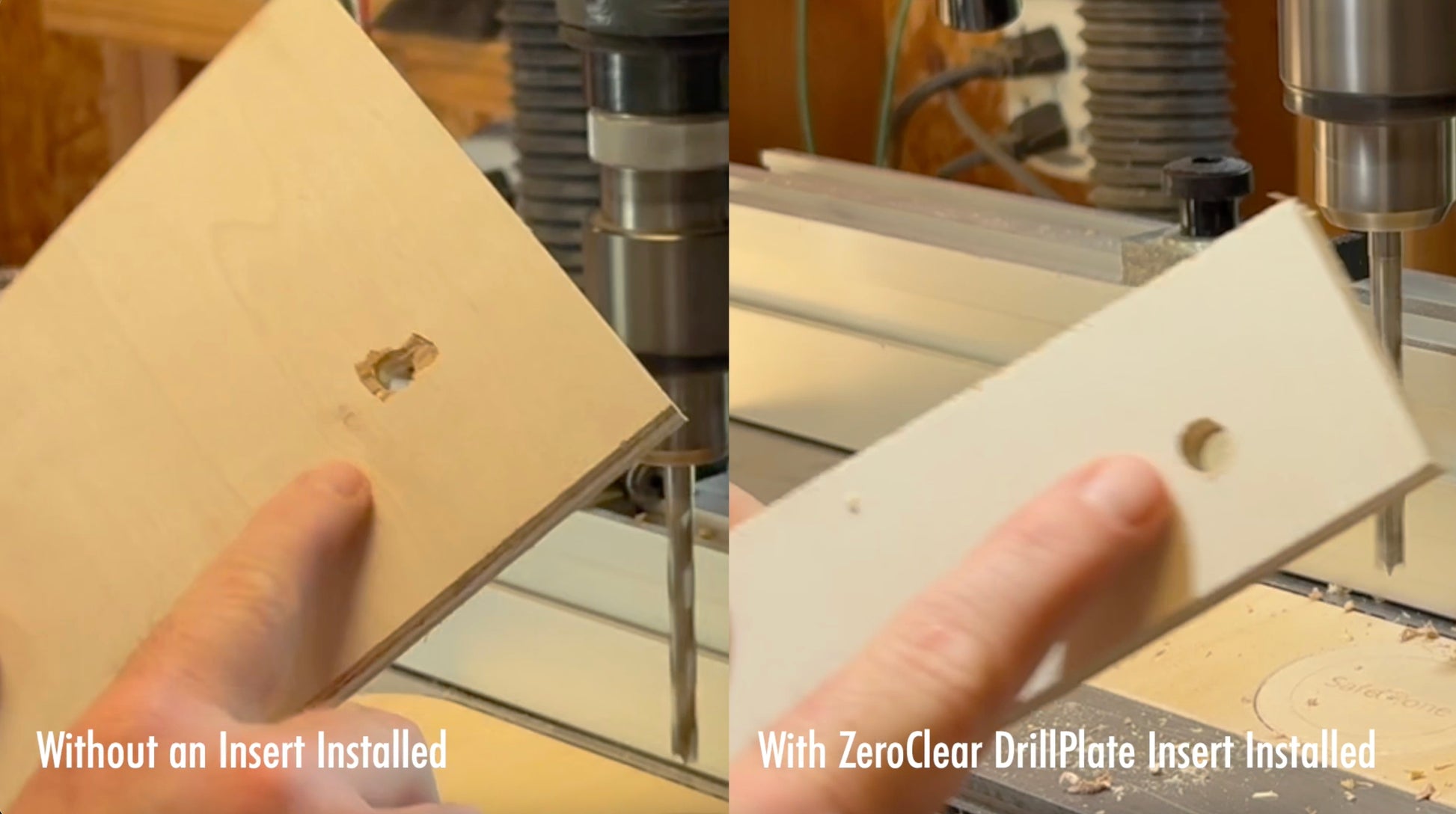

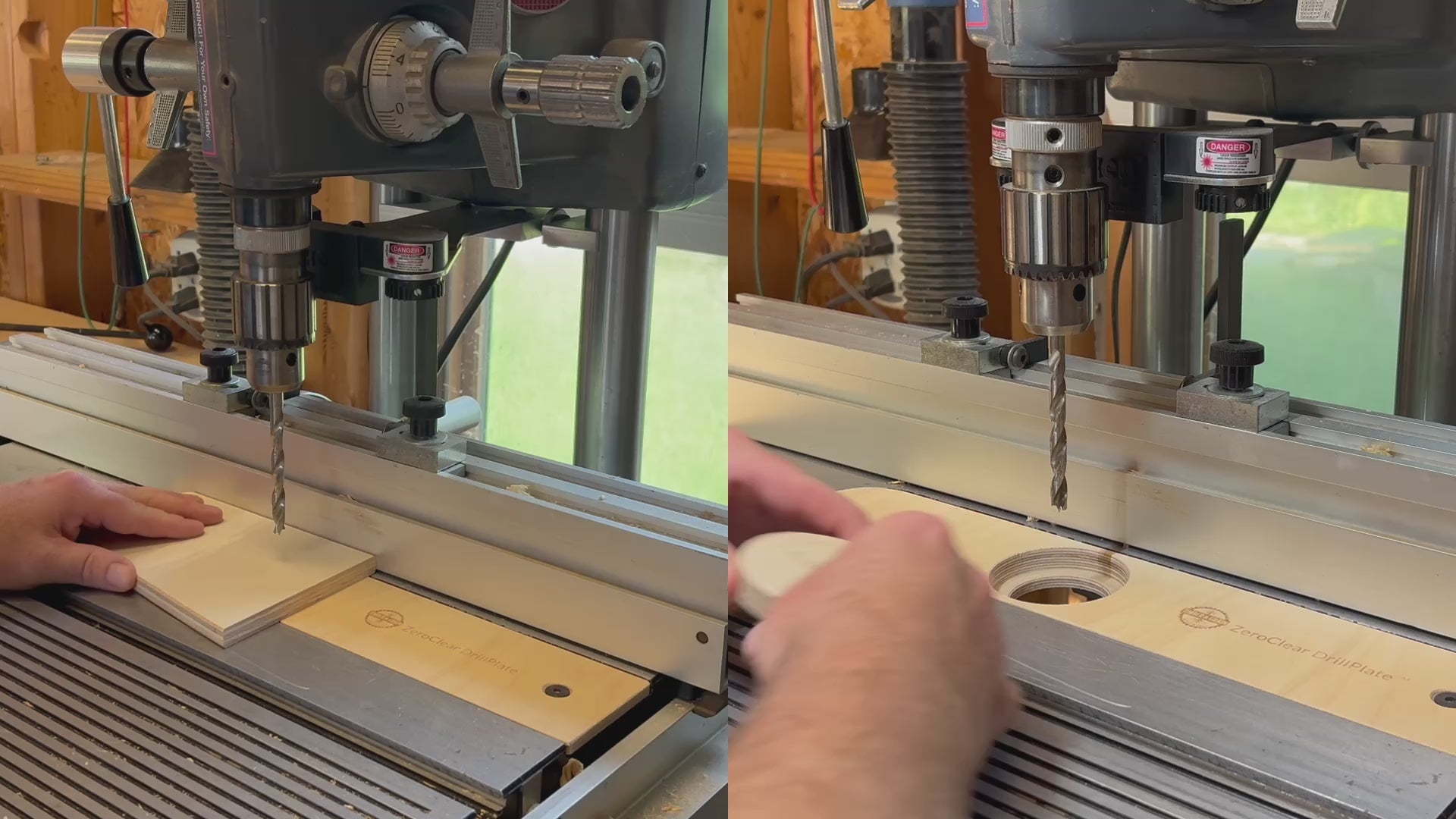

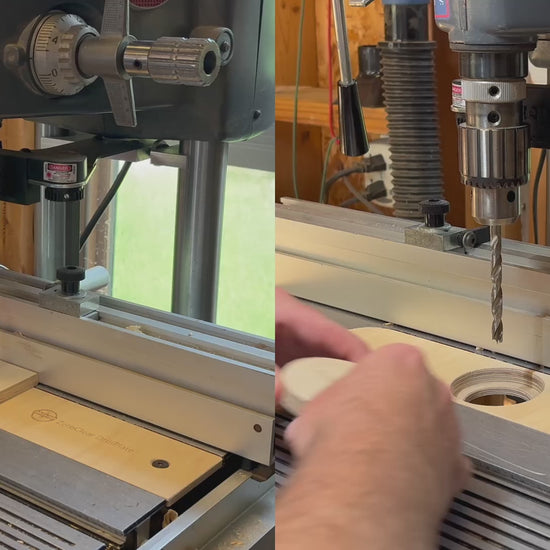

The ZeroClear DrillPlate™ by Timber & Grain is a precision CNC-machined, zero-clearance insert that transforms your ShopSmith drill press experience. Its replaceable SafeZone disc fully supports your workpiece as the bit exits — producing splinter-free holes and cleaner results every time.

🔧 Available Packages

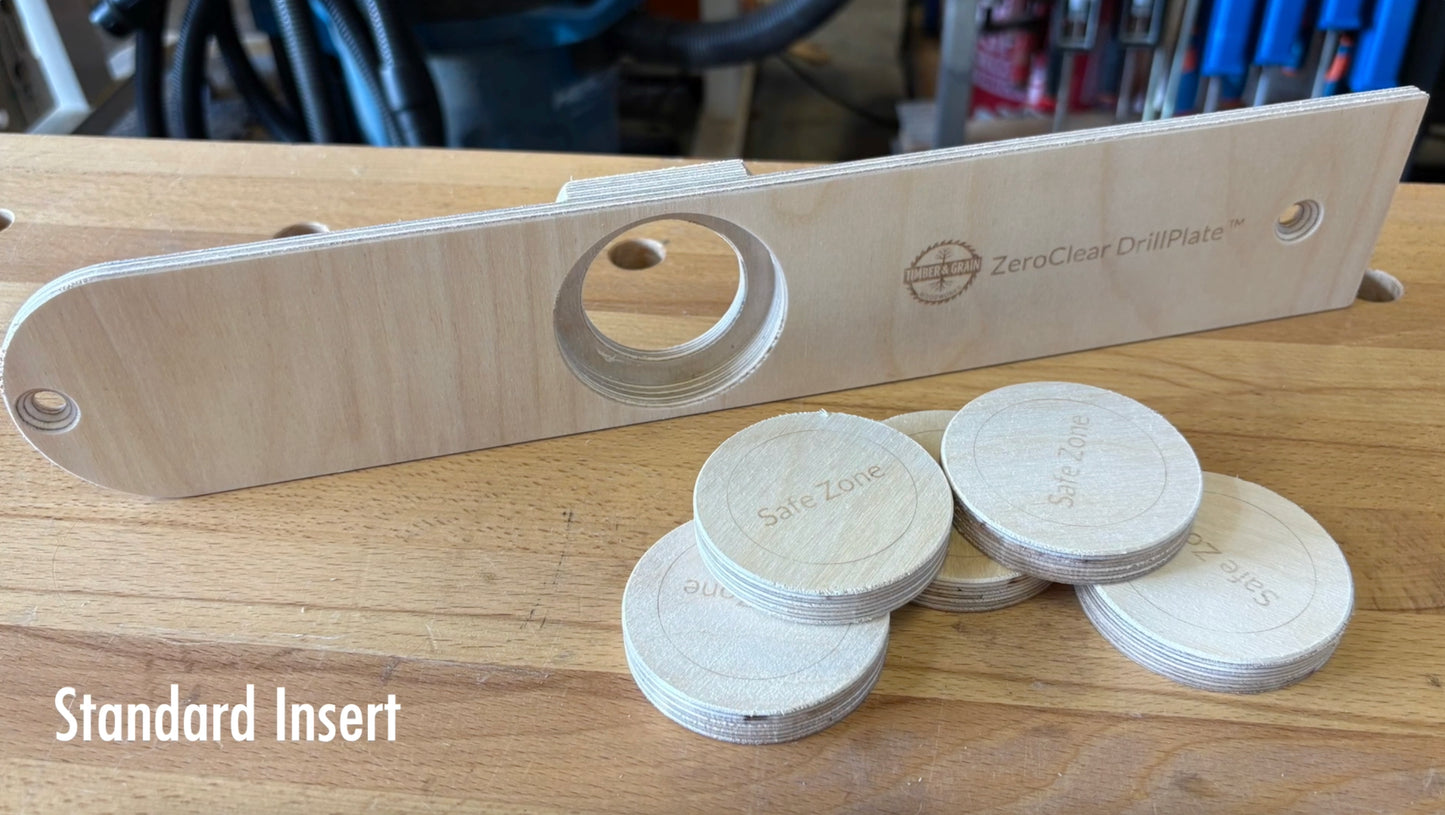

Standard – Includes 1 DrillPlate + 5 SafeZone discs

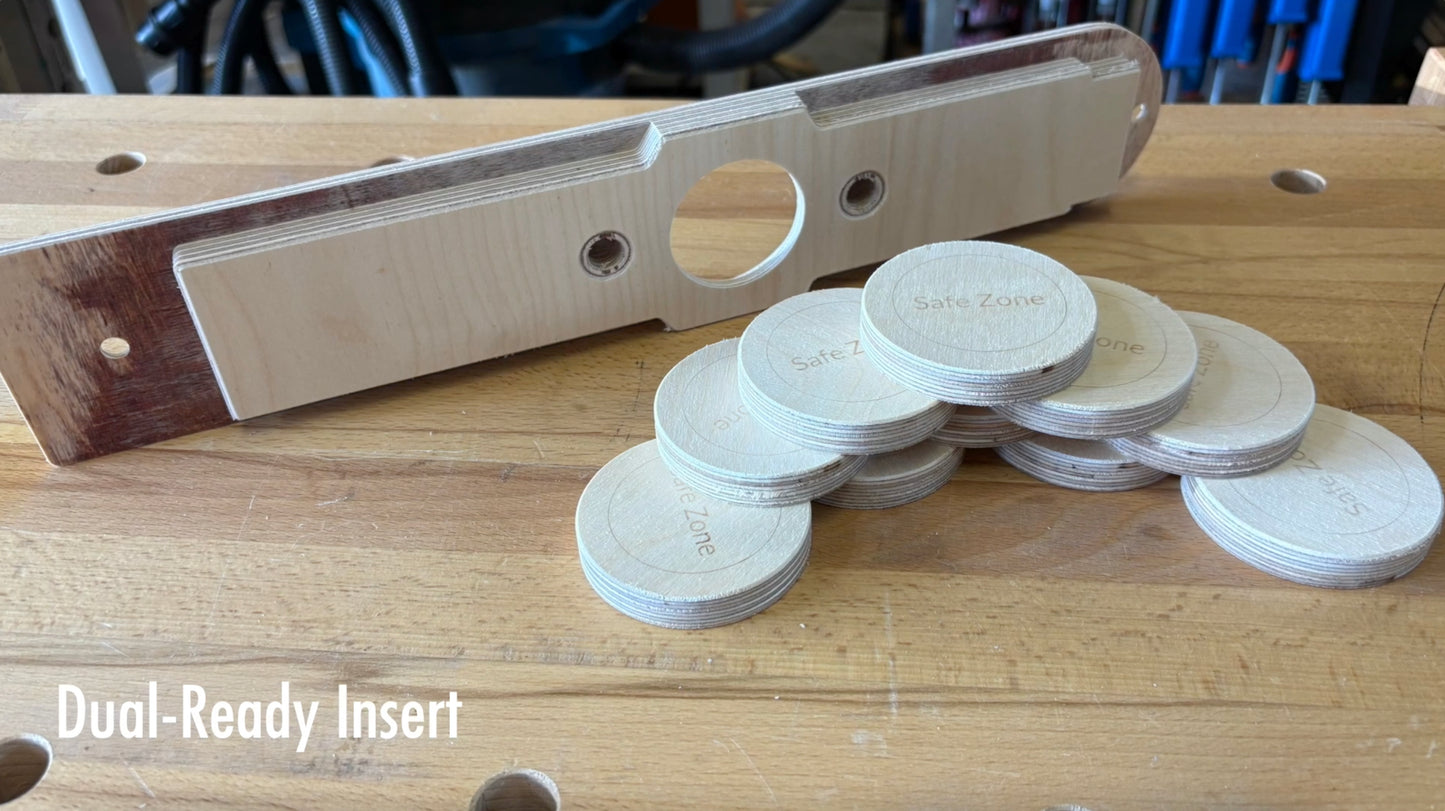

Dual-Ready – Includes 1 DrillPlate + 10 SafeZone discs, pre-drilled for future dust-collection upgrade using our custom shroud or your original ShopSmith shroud

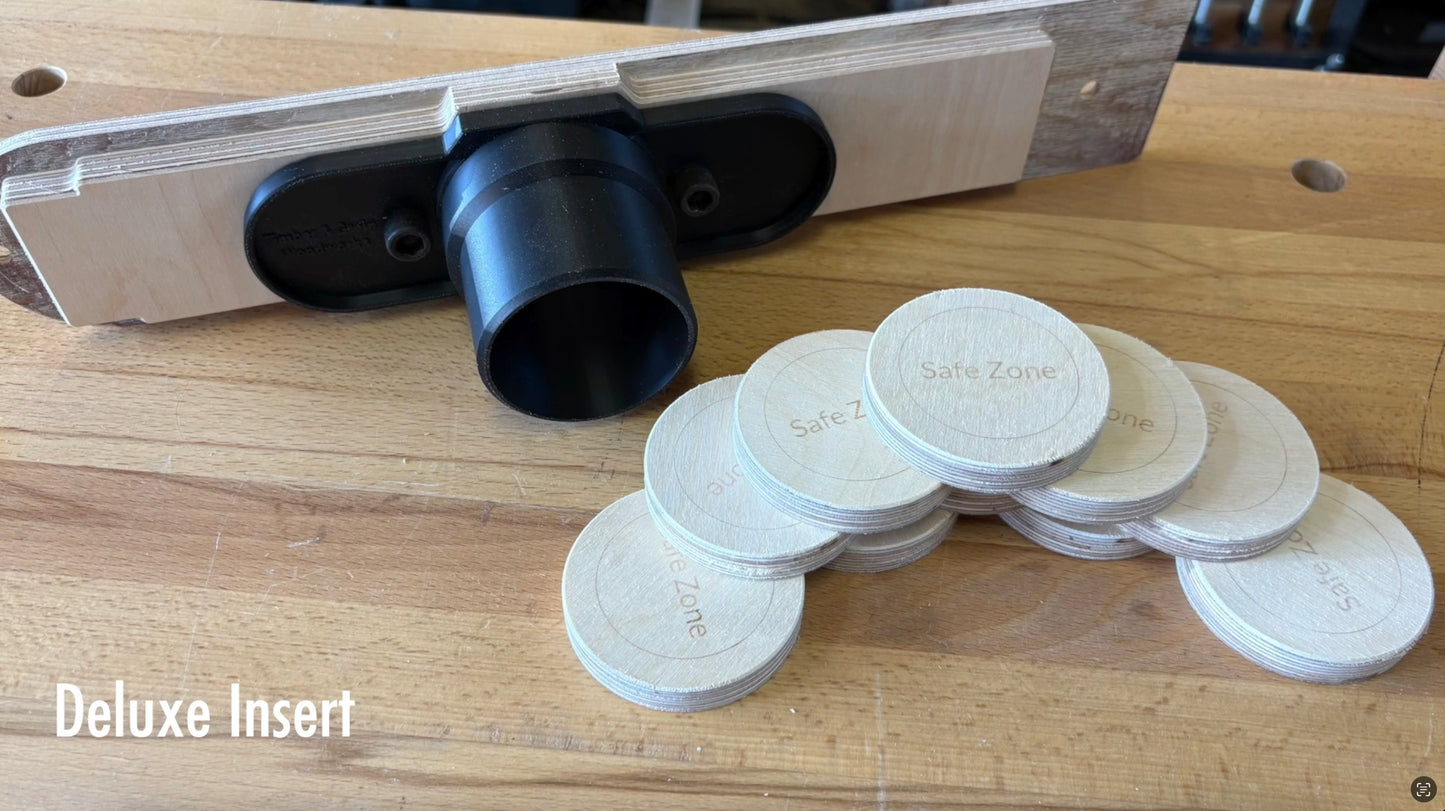

Deluxe – Includes 1 DrillPlate + 10 SafeZone discs, threaded inserts installed, and a custom 3D-printed Dust Shroudwith hardware that connects to a standard 2.5″ (or smaller) hose — perfect for drum sanding and dust control

🪵 Why ZeroClear

• CNC-machined from ¾″ 13-ply Baltic birch for exceptional strength and precision

• Chamfered edges for quick, easy SafeZone disc changes

• Replaceable SafeZone discs provide up to 16 clean-hole positions per disc (for bits ≤ ⅜″)

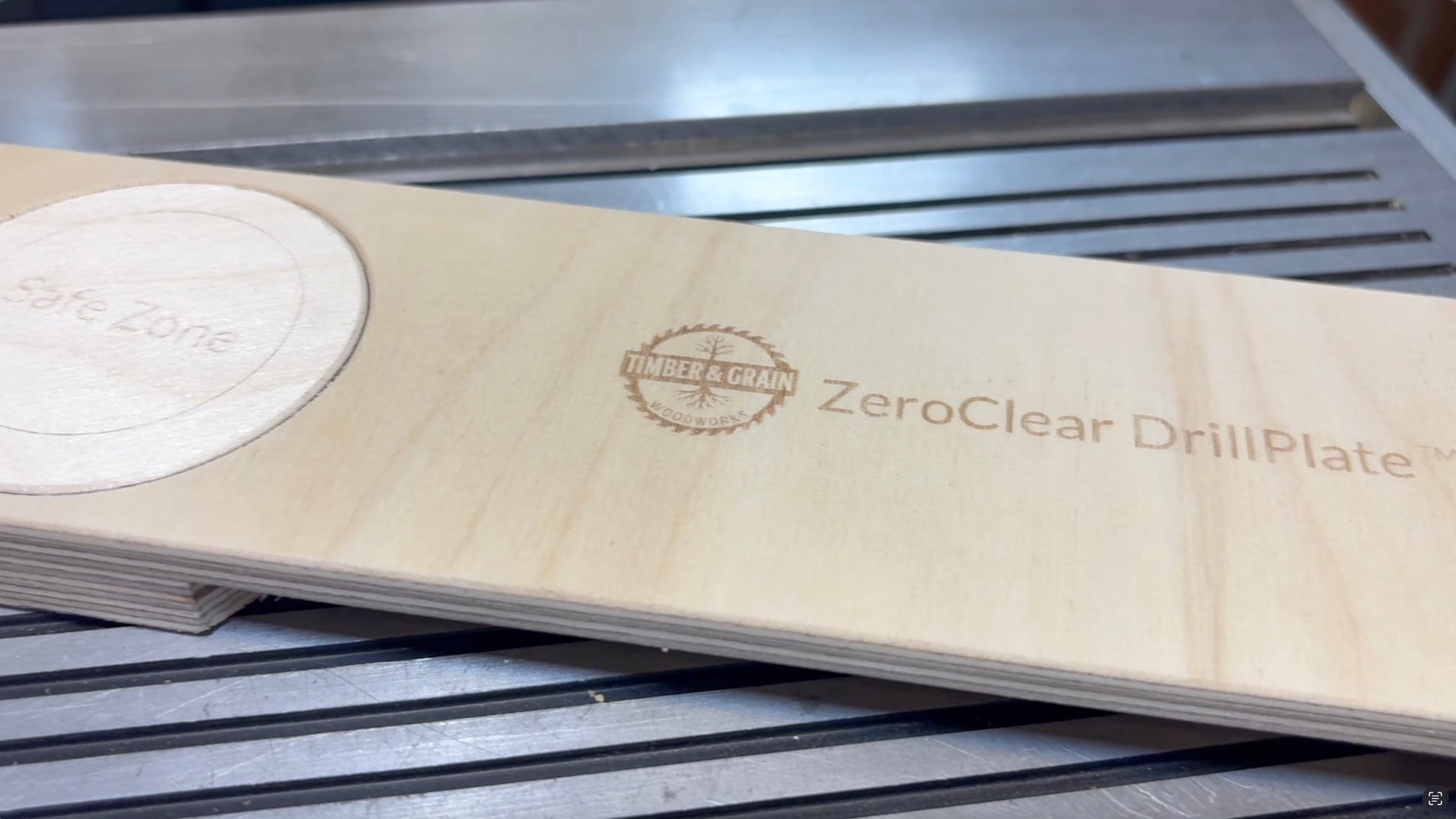

• Laser-engraved markings guide exact bit placement

• Hand-finished in Knoxville, Tennessee, by a long-time ShopSmith owner who knows the machine inside and out

♻️ Refill Discs

Need extras? Packs of 10 SafeZone discs are available anytime.

⚙️ Compatibility

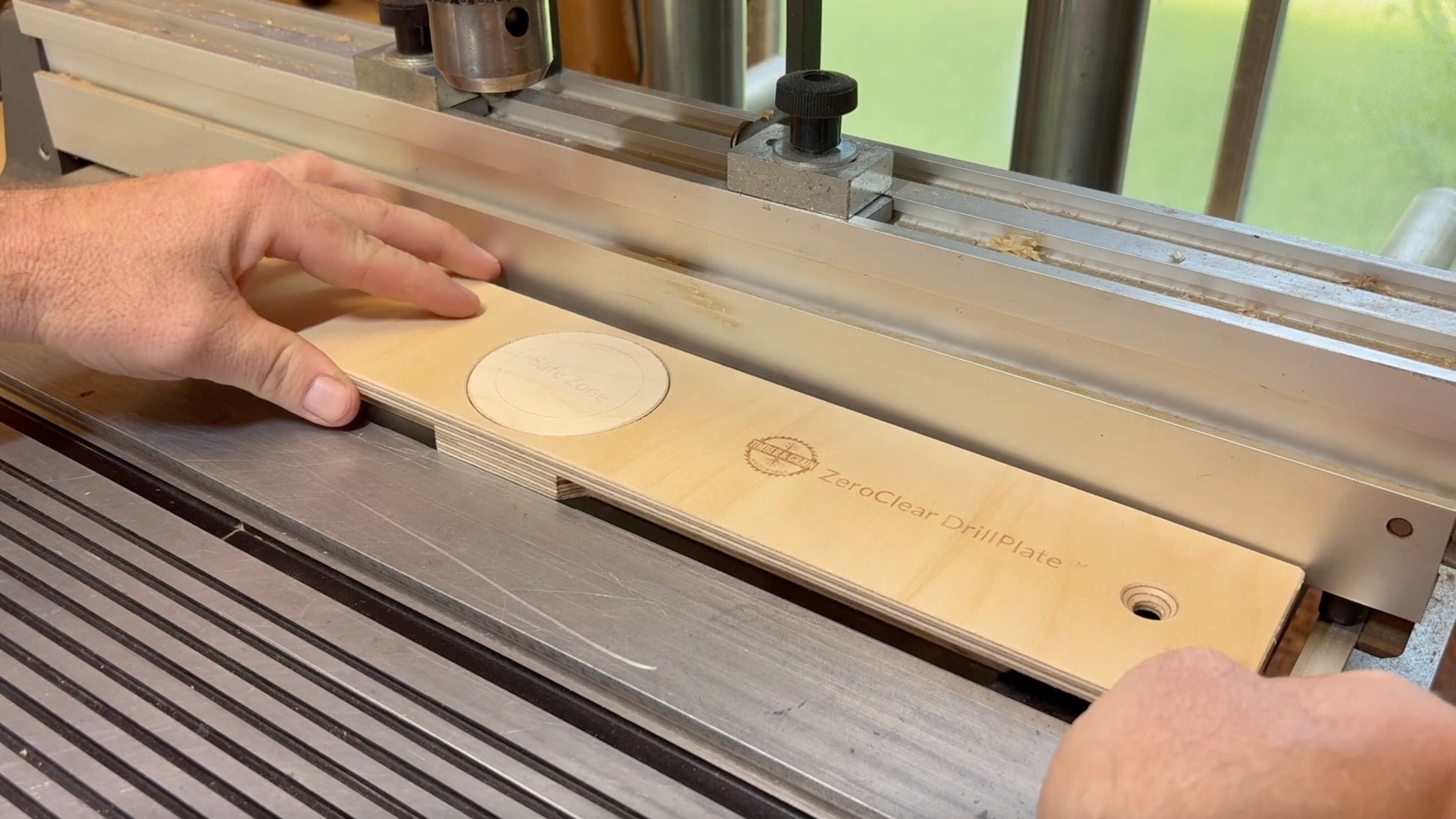

Designed for ShopSmith Mark V 510/520 and Mark 7 table systems.

Have a ShopSmith 500? Contact us — that version is in the design phase now.

📦 Shipping & Support

Orders ship anywhere in the U.S. via discounted USPS or UPS rates.

Every DrillPlate is packed securely and backed by the same care we put into our own tools.

✳️ Maker’s Note

I designed the ZeroClear DrillPlate to solve the exact frustration I faced drilling clean holes on my own ShopSmith. Each one is crafted with precision, tested in-shop, and built to last.
